304 Stainless Steel Threaded Ball Valve with Full Port Design for Industrial Flow Control

  • 304 Stainless Steel Threaded Ball Valve with Full Port Design for Industrial Flow Control
Herkunftsort China
Markenname YOUWEI

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.

x
Produktdetails
Material Guss, Messing, Edelstahl, Sphäroguss, GGG40 Portgröße DN50-DN1200,Standard,2"-24"
Leistung Manuell, elektrisch betätigt, hydraulisch, handradbetrieben, GO Druck Mitteldruck, Niederdruck, PN10-16, PN1,0/PN1,6,250PSI
Medientemperatur Mittlere Temperatur, normale Temperatur, niedrige Temperatur, -10~100℃ Medien Wasser, Öl usw., Gas und so weiter
Anwendung Allgemein, Bewässerung, Wasserverteilung, Industrie, Wassersystem Struktur Ball
Standard oder Nichtstandard Standard Produktname Absperrschieber, elektrischer Absperrschieber aus Gusseisen mit nicht steigender Spindel DN40-DN600,
Standard DIN,BS,JIS,F5;AWWA C509/C515;ANSI,DIN3352 Größe DN40-DN600, DN50 ~ DN 1000, 2''-24'', DN15 bis 100
Verbindung Mit Gewinde, BSP, Buchsenenden, Innengewinde Körpermaterial Sphäroguss, DI/CI, DI, Gusseisen, Messing
Farbe Blau, Kundenwunsch, Kundenanforderung, Gelb, GRAU Medium Wasser, Wasser, Öl, Gas
Typ Kugelhahn, normal offen, 2-Wege, nicht steigender Schaft/NRS Ventiltyp Ballventil
Siegel Gummi ausgekleidet, Metall, PTFE
Hervorheben

304 Stainless Steel Ball Valve

,

Threaded Ball Valve

,

Full Port Ball Valve
Hinterlass eine Nachricht
Produkt-Beschreibung

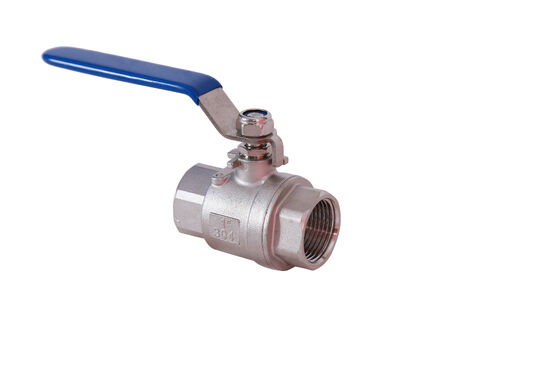

304 Threaded Ball Valve
The 304 Threaded Ball Valve is a high-performance industrial valve designed for reliable on/off and flow control in a wide range of fluid handling applications. Constructed from corrosion-resistant 304 stainless steel, this valve is suitable for use with water, oil, gas, steam, and mild chemical media.
Product Overview
This threaded ball valve features screwed ends that allow for easy installation without welding, making it ideal for maintenance, retrofit, and modular piping systems.
Key Features
  • Material Excellence: Made from AISI 304 stainless steel, offering excellent corrosion resistance, durability, and hygiene for demanding environments.
  • Full Port Design: Provides minimal flow restriction, low pressure drop, and superior flow capacity.
  • Threaded Connections: NPT or BSPP threads ensure secure, leak-free installation and easy integration into existing pipelines.
  • Quick Operation: Quarter-turn (90°) handle allows for fast opening and closing, improving operational efficiency.
  • Robust Sealing: PTFE or reinforced PTFE seats ensure tight sealing, long service life, and compatibility with various media.
  • Compact & Lightweight: Easy to handle, install, and maintain, even in tight spaces.
  • Multi-Application Suitability: Suitable for industrial, commercial, HVAC, water treatment, and food processing systems.
Technical Specifications
Specification Details
Body Material 304 Stainless Steel (AISI 304 / CF8)
Seat Material PTFE, RPTFE, or optional PPL / metal seated versions
Connection Type Threaded (NPT, BSPT, BSPP available)
Size Range ¼" to 4" (DN8 to DN100)
Pressure Rating Class 150 / PN16 (higher ratings available upon request)
Temperature Range -20°C to 200°C (depending on seat material)
Operation Manual lever, gear-operated, or actuator-ready
Standards Compliance ISO, ANSI, DIN, JIS, or as customized
Applications
  • Industrial process lines (chemical, petrochemical, pharmaceutical)
  • Water supply and treatment systems
  • HVAC, refrigeration, and heating circuits
  • Food, beverage, and dairy processing
  • Compressed air and gas pipelines
  • Marine and shipbuilding applications
  • General plumbing and instrumentation systems
Installation & Maintenance
Ensure threads are clean and properly sealed with thread tape or sealant. Align valve orientation according to flow direction (if marked). Avoid over-tightening to prevent thread damage. Periodically check for leaks and operate the valve to maintain seat flexibility.
Benefits
Corrosion-Resistant: Ideal for humid, corrosive, and sanitary environments.
Easy to Install: No welding required, reducing installation time and cost.
Reliable Performance: Durable construction ensures long-term, leak-free service.
Versatile Use: Compatible with a wide range of media and industries.
