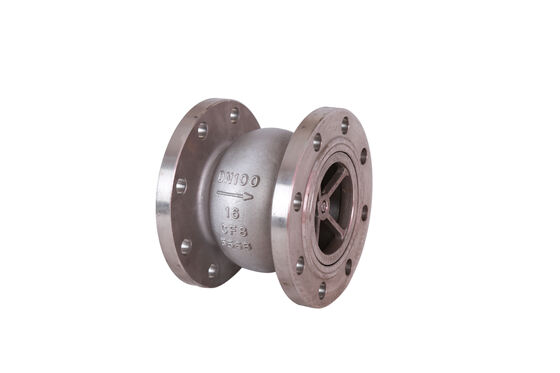

304 Stainless Steel Silent Check Valve HC41X-16P with PN16 Pressure Rating and Wafer-Style Design

  • 304 Stainless Steel Silent Check Valve HC41X-16P with PN16 Pressure Rating and Wafer-Style Design
Herkunftsort China
Markenname YOUWEI

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.

x
Produktdetails
Material Guss, Messing, Edelstahl, Sphäroguss, GGG50 Portgröße DN50-DN1200,Standard,2"-24",DN50-800,3/4"
Leistung Manuell, elektrisch betätigt, hydraulisch, handradbetrieben Druck Mitteldruck, Niederdruck, PN10-16, PN1,0/PN1,6,250PSI
Medientemperatur Mittlere Temperatur, normale Temperatur, niedrige Temperatur, -10~100℃ Medien Wasser, Öl usw., Gas und so weiter
Anwendung Allgemein, Bewässerung, Wasserverteilung, Industrie, Wassersystem Struktur Absperrschieber, Absperrklappe, nicht steigender Absperrschieber
Standard oder Nichtstandard Standard Produktname Absperrschieber, elektrischer Absperrschieber aus Gusseisen mit nicht steigender Spindel DN40-DN600,
Standard DIN,BS,JIS,F5;AWWA C509/C515;ANSI,DIN3352 Größe DN40-DN600, DN50 ~ DN 1000, 2''-24'', DN15 bis 100
Verbindung Flanschenden, Doppelflansch, BSP, Muffenenden, Innengewinde Körpermaterial Sphäroguss, DI/CI, DI, Gusseisen, Messing
Farbe Blau, Kundenwunsch, Kundenanforderung, Gelb, GRAU Medium Wasser, Wasser, Öl, Gas
Typ Absperrschieber, normal offen, 2-Wege, nicht steigender Schaft/NRS Ventiltyp Schieber
Siegel Gummi ausgekleidet, Metall, PTFE
Hervorheben

304 Stainless Steel Silent Check Valve

,

PN16 Pressure Rating Silent Check Valve

,

Wafer-Style Design Silent Check Valve
Hinterlass eine Nachricht
Produkt-Beschreibung
304 Silent Check Valve HC41X-16P
The HC41X-16P is a precision-engineered silent check valve designed to prevent reverse flow in pipeline systems with minimal pressure loss and exceptional operational quietness.
Construction & Materials
Constructed primarily from AISI 304 (CF8) Stainless Steel, this valve offers excellent corrosion resistance for a wide range of media. The main body, spring, and disc are manufactured from 304 stainless steel, while the sealing element consists of durable Nitrile (NBR) or Fluorocarbon (FKM) O-ring or gasket.
Operating Principle
Utilizes a spring-assisted, axial-guided disc mechanism housed within a compact wafer-style body. The guided disc moves linearly along the valve axis, opening against spring force and fluid pressure, and closing swiftly and smoothly under spring tension and reverse flow.
Key Features
  • Silent Operation: Eliminates water hammer and associated pipeline noise through rapid, controlled closing
  • Compact Design: Wafer-style construction requires minimal installation space and fits between standard ANSI/PN flanges
  • Pressure Rating: Rated for PN16 (16 bar), suitable for Class 125 service
  • Flow Efficiency: Streamlined, full-port flow path results in very low head loss coefficient
  • Flexible Installation: Can be installed in both horizontal and vertical pipelines with upward flow
Technical Specifications
Model HC41X-16P
Body Material AISI 304 Stainless Steel
Pressure Rating PN16 (16 bar) / Class 125
Sealing Material Nitrile (NBR) or Fluorocarbon (FKM)
Installation Horizontal and vertical (upward flow)
Applications
Ideal for applications where noise, water hammer, and space are critical concerns. Widely used in HVAC systems, water supply and treatment, irrigation, chemical processing, food and beverage, pharmaceutical industries, and general industrial plumbing systems handling water, air, oils, and mild corrosive fluids.
Quality Assurance
Designed and manufactured to meet relevant industry standards for dimension, pressure, and performance. Factory tested for shell strength and seat leakage.
The HC41X-16P 304 Stainless Steel Silent Check Valve is the optimal solution for modern piping systems demanding reliable, non-slam check valve performance. Its combination of corrosion-resistant construction, silent spring-assisted operation, compact wafer design, and low flow resistance makes it a superior choice for protecting pumps and equipment while ensuring quiet, efficient, and maintenance-friendly system operation.
