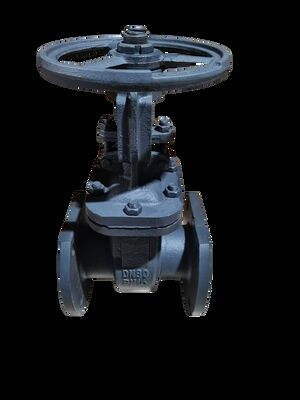

GOST Compliant Cast Iron Gate Valve with Bubble-Tight Shutoff for High Pressure PN16 Applications

  • GOST Compliant Cast Iron Gate Valve with Bubble-Tight Shutoff for High Pressure PN16 Applications
Herkunftsort China
Markenname YOUWEI
Zertifizierung CE, EAC

Kontaktieren Sie mich für kostenlose Proben und Gutscheine.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie Bedenken haben, bieten wir 24-Stunden-Online-Hilfe.

x
Produktdetails
Material Guss, Messing, Edelstahl, Sphäroguss, GGG40 Portgröße DN50-DN1200,Standard,2"-24",DN50-800,3/4"
Leistung Manuell, elektrisch betätigt, hydraulisch, handradbetrieben, GO Druck Mitteldruck, Niederdruck, PN10-16, PN1,0/PN1,6,250PSI
Medientemperatur Mittlere Temperatur, normale Temperatur, niedrige Temperatur, -10~100℃ Medien Wasser, Öl usw., Gas und so weiter
Anwendung Allgemein, Bewässerung, Wasserverteilung, Industrie, Wassersystem Struktur Absperrschieber, Absperrklappe, nicht steigender Absperrschieber
Standard oder Nichtstandard Standard Produktname Absperrschieber, elektrischer Absperrschieber aus Gusseisen mit nicht steigender Spindel DN40-DN600,
Standard DIN,BS,JIS,F5;AWWA C509/C515;ANSI,DIN3352 GRÖSSE DN40-DN600, DN50 ~ DN 1000, 2''-24'', DN15 bis 100
Verbindung Flanschenden, Doppelflansch, BSP, Muffenenden, Innengewinde Körpermaterial Sphäroguss, DI/CI, DI, Gusseisen, Messing
Farbe Blau, Kundenwunsch, Kundenanforderung, Gelb, GRAU Medium Wasser, Wasser, Öl, Gas
Typ Absperrschieber, normal offen, 2-Wege, nicht steigender Schaft/NRS Ventiltyp Schieber
Siegel Gummi ausgekleidet, Metall, PTFE
Hervorheben

GOST Compliance Gate Valve

,

Bubble-Tight Shutoff Cast Iron Valve

,

High Pressure PN16 Industrial Valve
Hinterlass eine Nachricht
Produkt-Beschreibung
Our Russian Standard (GOST) Gate Valves are engineered to deliver uncompromising reliability and performance in the most demanding industrial applications. Designed and manufactured in strict compliance with GOST standards, these valves guarantee compatibility and safety for pipelines and systems operating under Russian and CIS technical regulations.
Constructed from high-grade materials such as carbon steel (25L, 09G2S), stainless steel (12Х18Н10Т), or cast iron, each valve is built for durability and resistance to extreme pressures, corrosive media, and wide temperature fluctuations. The robust body houses a precision-machined wedge or parallel disc that ensures a bubble-tight shutoff, minimizing pressure drop and allowing for full, unobstructed flow in the open position.
Key Features & Technical Advantages
  • Full GOST Compliance: Certified to meet relevant GOST standards (e.g., GOST 3706, GOST 9544), ensuring regulatory acceptance and system compatibility.
  • Robust Construction: Forged or cast body with reinforced structure for high Pressure Nominal (PN) ratings (e.g., PN16, PN25, PN40) and exceptional longevity.
  • Superior Sealing: Precision-lapped sealing surfaces with optional enhanced seat materials (stellite, PTFE) for leak-proof performance with water, steam, oil, gas, and other industrial fluids.
  • Low Maintenance Design: Rugged stem with back-seating feature allows for packing replacement under pressure. Smooth operation is ensured by a high-quality gland packing and thrust bearings.
  • Multiple Actuation Options: Available with a handwheel (zinc-plated or coated), gear operator for high-torque applications, or as a prepared unit for pneumatic/hydraulic actuation.
  • Versatile End Connections: Supplied with flanged ends (GOST 12815, DIN, ANSI standards available) for secure and standardized installation.
  • Rigorous Quality Control: Each valve undergoes stringent pressure testing (shell and seat tests) and inspection to guarantee performance before shipment.
Primary Applications
  • Oil & Gas Pipelines and Refining Facilities
  • Power Generation Plants (Thermal & Nuclear)
  • Chemical and Petrochemical Processing
  • District Heating and High-Temperature Water Systems
  • Shipbuilding (Marine Systems)
  • Heavy Industry and Infrastructure Projects
Ensure the integrity, safety, and efficiency of your critical piping systems with our certified GOST Gate Valves. Contact our engineering team today to specify the exact model for your pressure, temperature, and media requirements.
